Flex-Arm Stereomicroscope

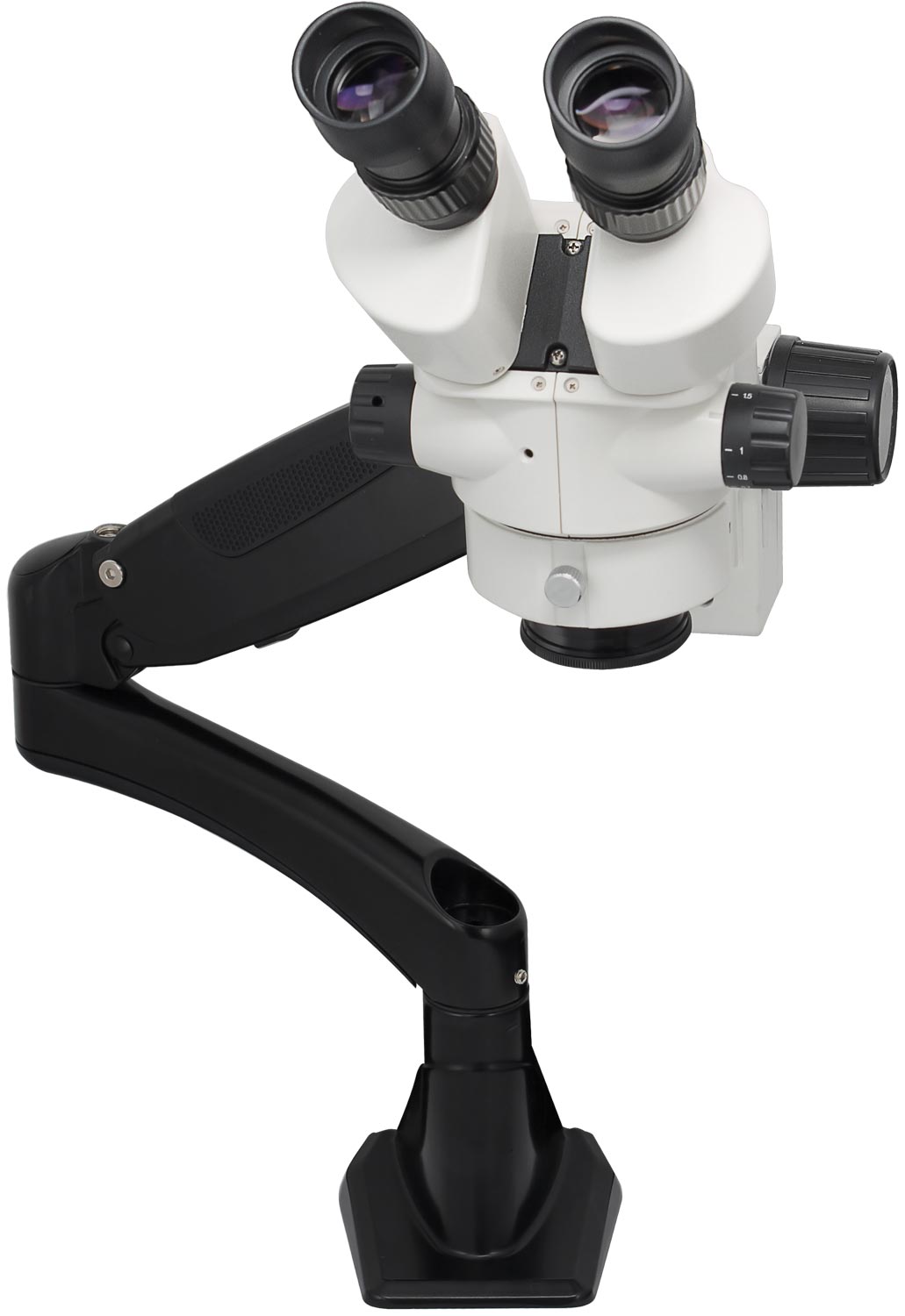

3072 StereoMicroscope from ACCU-SCOPE

Overview

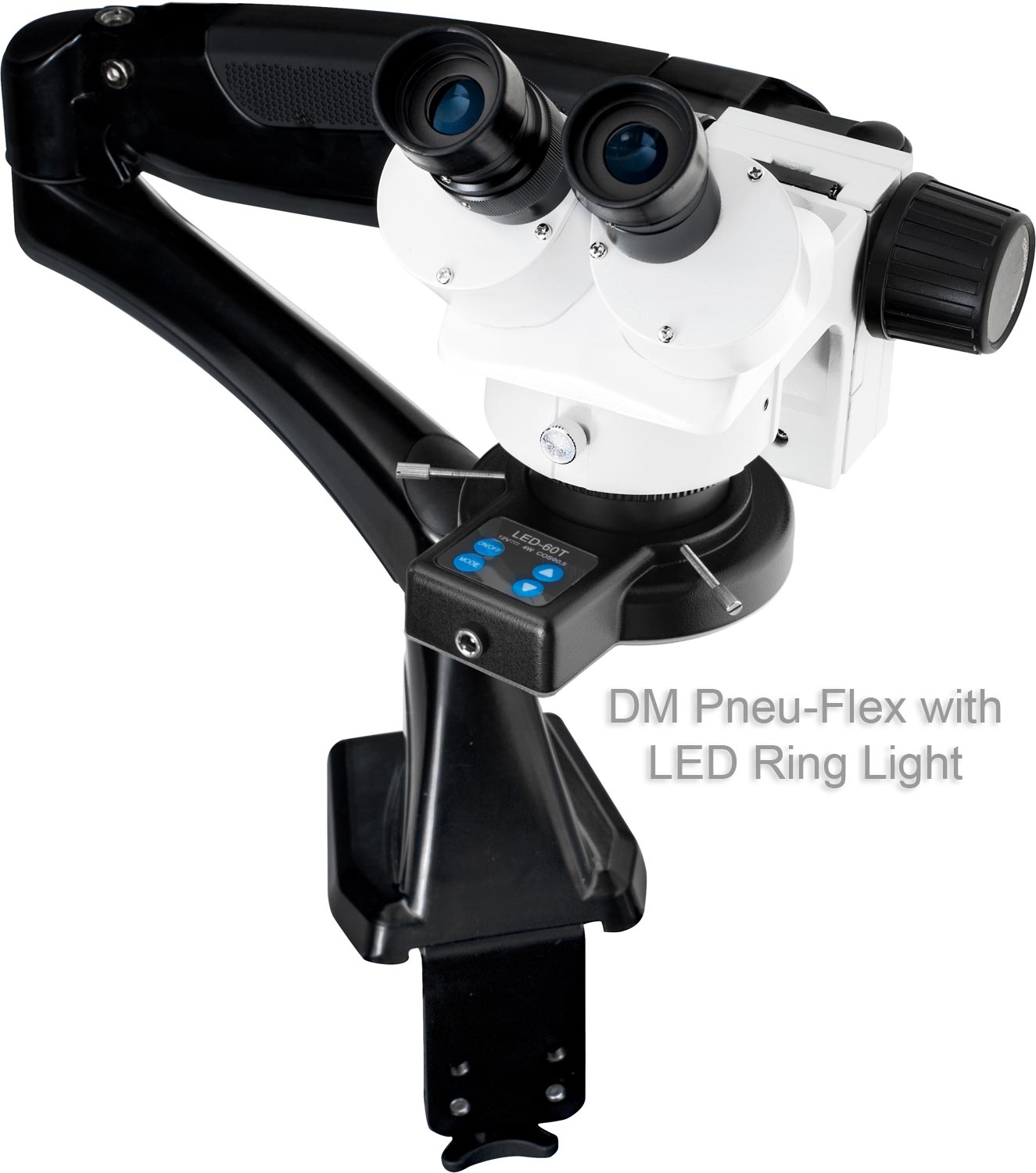

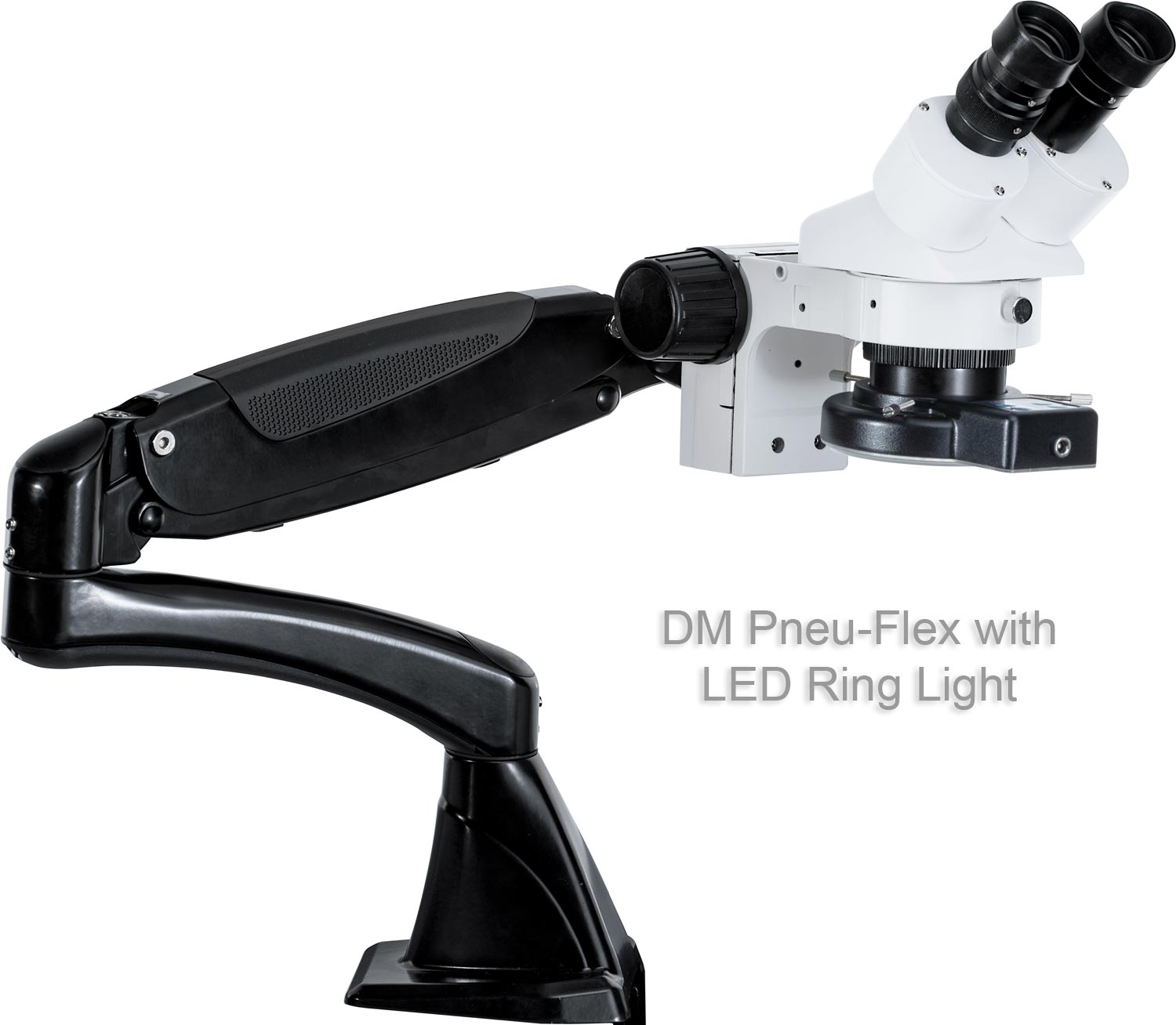

Your choice of a Dual Magnification or Zoom head, paired with the Flex Arm, bring functionality and ingenuity, allowing vertical, horizontal, and complete 360° adjustments.

This versatile system gives you control of your space and the knowledge that your scope is secure. The large optics produce increased field of view, working distance, and depth of focus.

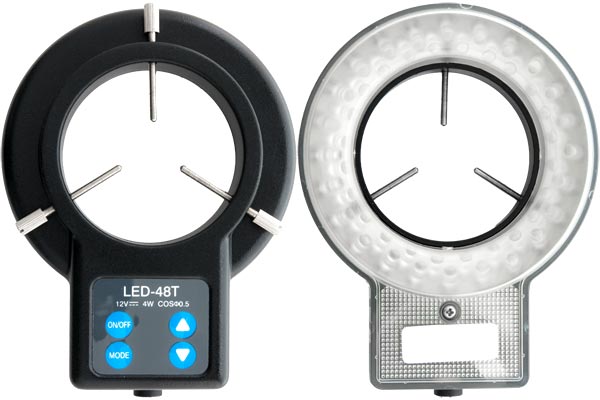

The included 0.5 supplementary lens doubles your field of view, expands your magnification options, and extends your working distance for hands-under work-space. The recommended 48-bulb LED ring light focuses bright, cool, shadow-free daylight illumination directly onto your work. The Pnueflex is the quality choice for dental, electronic, and industrial applications.

Details

The Pnueflex stereo microscope has its place in:
  • Agriculture
  • Biology
  • Electronics
  • Forensics
  • Forestry
  • Geology
  • Gemology
  • Jewelry
  • Precision Machine
  • Veterinary Medicine

Construction

  • Aluminum alloy construction
  • Acid and reagent resistant finish

Head

  • Binocular, dual mag 10/20, 10/30, 20/40, or 7-45x Zoom
  • Inclined 45°, rotates 360°
  • 10X/20 WF eyepieces
  • 30mm eye tube diameter
  • Interpupillary distance adjustment 55-75mm
  • Optional 5X, 15X, and 20X eyepieces

Power

  • 110-220V AC, 50-60Hz
  • 2 amp fuse protected

Objectives

  • Choose from 1X/2X, 1X/3X, or 2X/4X paired objectives or the Z4 0.7 to 4.5x hard-coated objectives
  • 0.5X supplementary lens included
  • Protective lens available

Adjustment Controls

  • Rack & Pinion based for long, heavy duty use
  • Tension adjustment on pneumatic horizontal arm
  • Adjustable-width c-clamp for mounting to a bench
  • Optional screw-down table flange for direct bench mount

Illumination

  • Ambient bench light may be sufficient

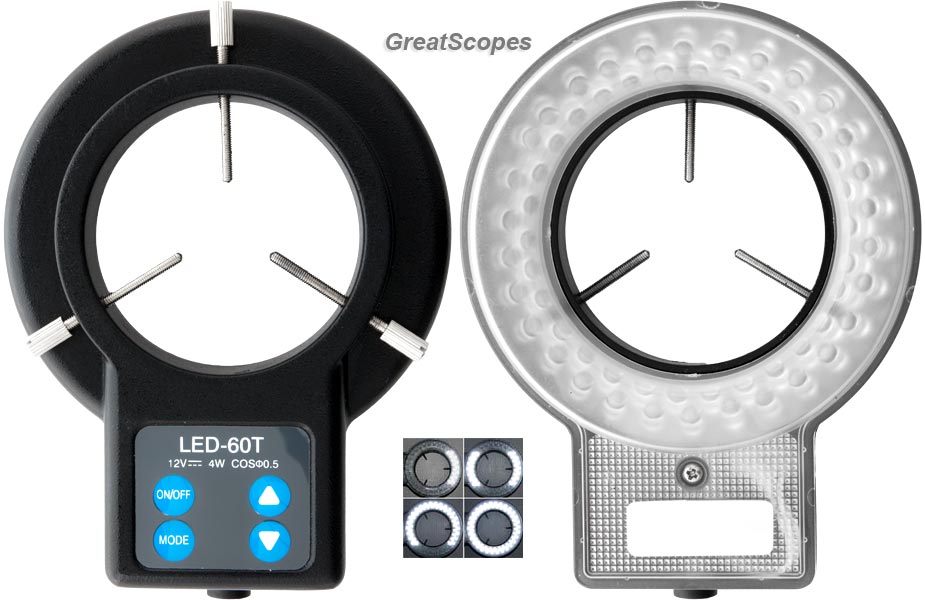

  • Optional ring lights offer shadow-free illumination and are highly recommended

Optical Head

  • Inclined 45 degrees
  • Full 360 degree rotation
  • Removable rubber eyeguards
  • Interpupillary adjustment (50 to 75mm)
  • Dual diopter adjustment
  • Trinocular optional - for mounting a camera or for second user

Weight & Dimensions

  • DM Head: 2.6lbs (2.54kg)
  • Z4 Head: lbs (kg)
  • Pneumatic Arm: 13.89lbs (6.3kg)
  • Maximum Radius: 14.96’’ (380mm)
  • Minimum Radius: 10.83’’ (275mm)

Ordering Information

Online Ordering

Click HERE for online ordering.

Phone, Fax, Purchase Order, & Mail Ordering

Click HERE for other than online ordering.

Shipping Rates

Rates in the Continental USA will be shown in your shopping cart. Costs are higher to Alaska, Hawaii, and locations outside the USA. Email us your shipping address and equipment list for rates outside the lower 48.

Quantity Pricing is available.
