MEC4 Inverted Metallurgical Microscope

MEC4 Metallurgical Microscope from UNITRON

Overview

  • For observation of metallurgical samples, electronic components, and metal parts
  • Suitable for viewing with brightfield & simple polarization
  • Infinity M Plan Achromat long working distance objectives provide bright, high resolution images with improved contrast and high N.A. values
  • Compact, ergonomic design
  • From UNITRON, Catalog # 14620

Details

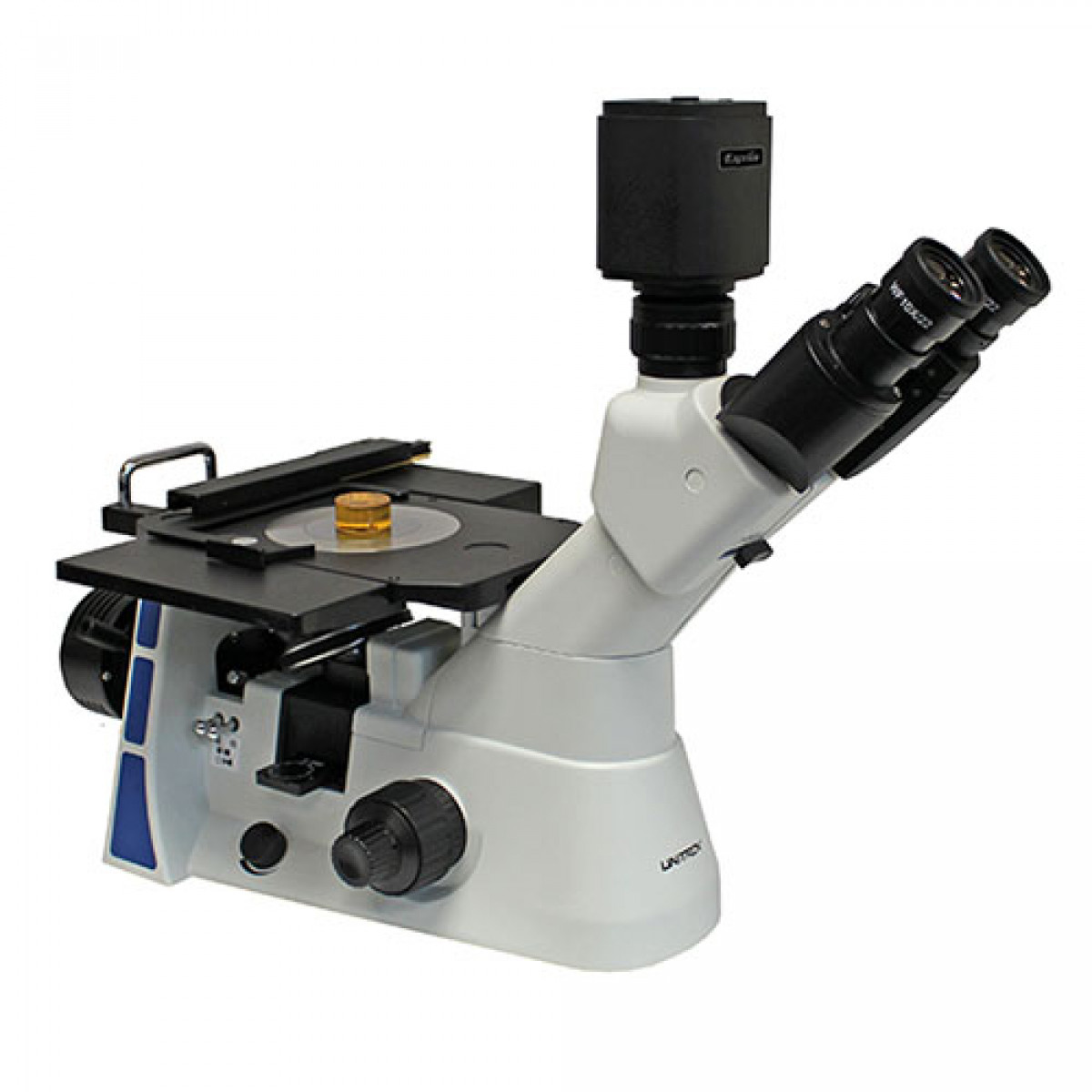

MEC4 Inverted Metallurgical Microscope from Unitron

Fixed stage design with an included attachable mechanical stage provide stable control, even with heavy samples

UNITRON’s new Infinity M Plan Achromat LWD (Long Working Distance) objectives provide bright, high resolution images with improved contrast and high N.A. values

5 watt LED reflected light illuminator with a condenser


Optical System

  • UNITRON Infinity M Plan Achromat LWD 5x, 10x, 20xR and semi-apo 50x objectives
  • Optional 100x dry objective is available

Observation Method

  • Brightfield and Simple Polarizer/Analyzer
  • 360° Rotating Head
  • Blue, Green, and Frosted Filters

Eyepieces

  • WF10x/22mm Focusing Eyepieces with Roll-Down Eyeguards

Viewing Head

  • 45° Inclined Trinocular Viewing Head with 54-75mm Interpupillary Adjustment

Selectable Imaging Port

  • 100% to Eyepieces
  • 20% Eyepieces / 80% Camera

Focusing

  • Vertical Action Movement Revolving Nosepiece (fixed stage)
  • Coaxial Coarse and Fine Adjustment Nosepiece
  • Quintuple Revolving Nosepiece

Stage

  • Plain stage: 160mm(W) x 250mm (L), includes Ø12mm and Ø25mm aperture teardrop stage insert plates
  • Mechanical stage: travel range 120mm (X) 78mm (Y); the mechanical stage is standard on each complete unit; coaxial handle attachable to right side; includes Ø12mm and Ø25mm aperture teardrop rectangular stage plates
  • Stage extender plate: 70mm X 180mm

Illuminator

  • 5 watt Variable LED Illuminator
  • Built-in Lever Type Condenser
  • Field and Aperture Diaphragms Filter Slider for Blue, Green, and Frosted filters

Dimensions & Weight

  • 300 x 650 x 437.5mm (w x d x h) with mechanical stage
  • weight: 23 lbs.

Accessories

  • Excelis HD, Lumenera®, and Micrometrics® cameras with measurement and materials software
  • C-mount adapters with 0.35x, 0.50x, 0.65x high resolution, 1.0 x high resolution, and photo tube
  • Reticles: crossline, grid, Austenite grain size and custom patterns are available
  • Stage micrometers, Metric (mm) and English (inches) with NIST traceability are available
