Revelation III Medical Microscope

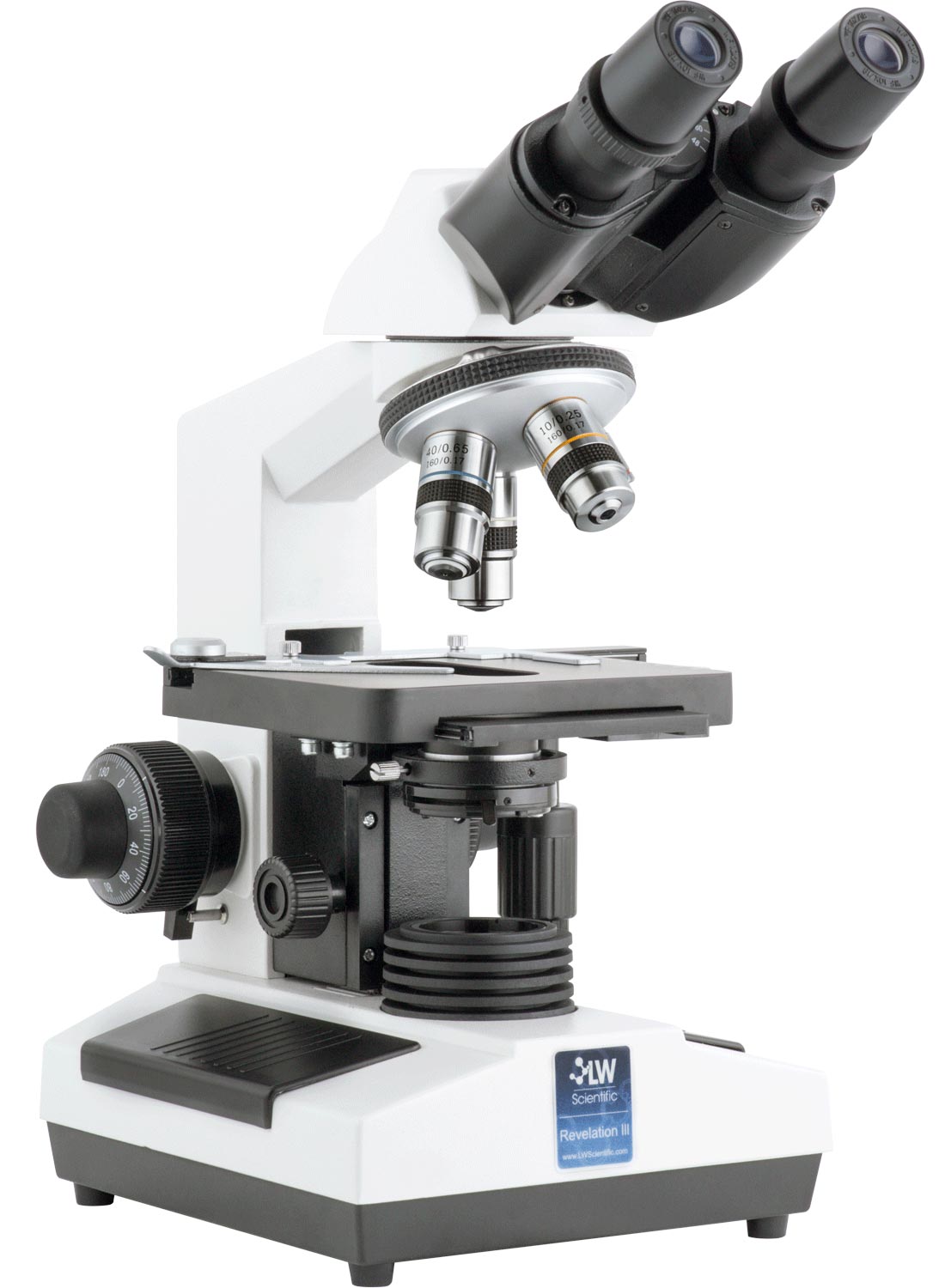

Revelation III Binocular Medical Microscope

.

msrp $815.00

$569.00

Save $246.00

Overview

The Revelation III is a top choice among our physician clinic, breeder, and college lab customers. It also been a top choice with serious hobbyists.

  • Achromatic Objectives: 4x 10x 40x 100x with Plan Achromatic option
  • 30 Year anti-fungal coated Objectives
  • Widefield eyepieces, High Point eyepiece option
  • Siedentopf Binocular head, Trinocular available (for adding a camera)
  • Coarse & Fine focus with Tension control knob
  • Mechanical stage (140mm x 130mm)
  • LED bulb ready for 30,000 hours of service
  • Variable light adjustment
  • 100-240V / 50-60Hz automatic-switching power input
  • LIFETIME warranty on Optical and Mechanical components, One year warranty on electronic components

Details

The Revelation III professional binocular microscope is well suited for academic, research, and professional environments.  Equipped for performance, its features include titanium finished achromatic optics (Plan optics at additional cost) with a 30 year anti-fungal coating.  Now with LED Lighting, the Revelation III is the choice for superior performance at a great value.

The Revelation III is a top choice for serious hobbyists to college classrooms to doctor's offices - it gets the job done!


Head

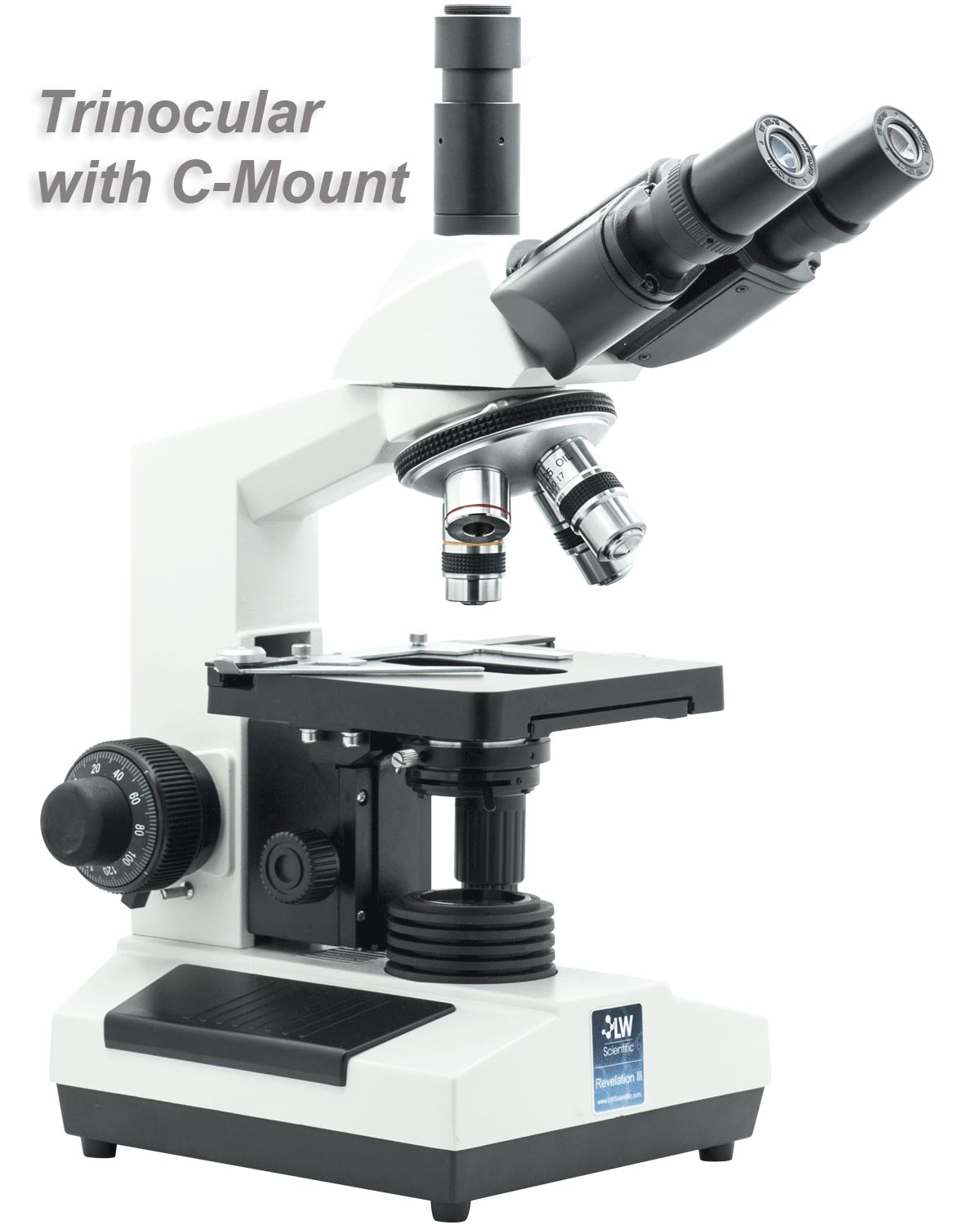

  • Seidentopf Binocular head is inclined 30 degrees for ease of use and rotates full 360 degrees. Trinocular head is an available option for mounting a camera or a third eyepiece for another individual to view.
  • High Quality 10x wide field eyepieces, coated to eliminate reflection.
  • Diopter adjustment, allowing adjustment to your exact needs
  • Interpupillary distance adjustment (Range 55 to 75mm)

Construction

  • The Revelation III is constructed of a rugged alloy, and finished with an acid and reagent resistant coating, with 30 year anti-fungal coating on all lenses

Objectives

  • Four, flat field, achromatic, DIN objectives: 4x (NA .10), 10x (NA .25), 40xr (NA .65), 100xr (NA 1.25 Oil)  ("xr" indicates that the lens is retractable)
  • Objectives are mounted in a ball bearing quadruple nosepiece for a lifetime of trouble-free use
  • Titanium finish
  • Parcentered and Parfocal
  • The objectives can be upgraded to Plan at the time you order your scope. Standard Achromatic Objectives are flat-field and in focus in the center 60% of the field of view. Plan objectives take that to 100%.

Eyepieces

  • A matched pair of 10x/18mm wide field eyepieces are included. An upgrade to High Point, 10x/20mm eyepieces will provide a wider field of view and often permit use of the microscope without removing eyewear
  • Titanium finish
  • Parcentered and Parfocal

Stage

  • Built in Mechanical stage (140 x 140mm) has coaxial drive controls (Lateral and forward/reverse positioning). Range of traverse is 73mm x 43mm, can accommodate up to 3" x 2" slides.
  • Stage locking lever protects slides and objectives

Focus Controls

  • Coarse and fine focus adjustments with focusing limit control. Coarse adjustment range of 15mm, fine adjustment has graduation of 2um.
  • Tension control knobs permit easy adjustment of focus controls
  • The precision focus system based on all metal rack and pinion gearing system for long, maintenance free life. (Many lesser scopes use nylon or plastic gears.)

Illumination

  • Movable Abbe condenser, NA 1.25, rack & pinion
  • Iris diaphragm
  • 100-240V AC / 50-60Hz Auto-Switching Input
  • Variable LED light source (3W bulb)

Measurements

  • 9" (L) x 7" (W) x 15" (H)
  • 14 lbs.

Additional Data

  • Dust cover included
  • The Revelation III achieves four magnifications: 40x, 100x, 400x, and 1000x
  • Medical & Veterinary Students - an Eyepiece Pointer can be added on request at no charge

Ordering Information

Online Ordering

Click HERE for online ordering.

Phone, Fax, Purchase Order, & Mail Ordering

Click HERE for other than online ordering.

Shipping Rates

Rates in the Continental USA will be shown in your shopping cart. Costs are higher to Alaska, Hawaii, and locations outside the USA. Email us your shipping address and equipment list for rates outside the lower 48.

Quantity Pricing is available.
